Description
1. Compatible with integrated handlebars, allowing for quick and efficient installation and removal. The mount features a built-in 1/4″ threaded hole, which can be paired with a carbon fiber extension rod to effortlessly capture stunning panoramic cycling perspectives. The top section integrates a cycle computer mount for real-time viewing of riding data, while the bottom is equipped with a three-claw interface for rapid attachment of action cameras or bike lights, meeting diverse needs for cycling photography and illumination.
2. Compatible Product: Osmo 360
Tips:
1. Please note the installation dimensions to ensure compatibility with your bicycles integrated handlebar.
2. The camera must only be connected using the 28 cm carbon fiber extension rod. Direct mounting of the camera to the handlebar bracket is not supported.
3. Must use the included wrenches to tighten all connection points according to the package instructions during installation.
4. It is recommended to use on smooth road surfaces; avoid riding in low-light conditions or on bumpy terrain.
5. If the bracket bottom is close to the handlebar, to achieve optimal stitching results during installation, avoid positioning the bottom directly facing complex lines such as cables/hoses.
Specifications:
Osmo Bicycle Multi-function Integrated Handlebar Bracket

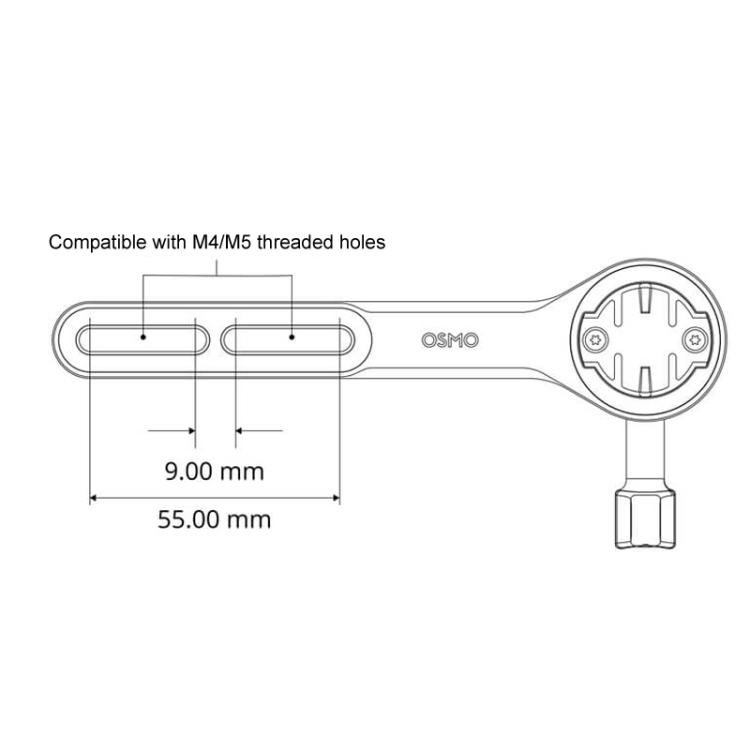

— Dimensions: 149 mm (L) × 44.3 mm (W) × 36 mm (H)
— Weight: 70.6 g
28 cm Carbon Fiber Extension Rod
— Dimensions: 290.2 mm (L) × 23 mm (W) × 16.9 mm (H)
— Weight: 42.1 g
Osmo Locking Thumbscrew
— Dimensions: 55.6 mm (L) × 23 mm (W) × 13.3 mm (H)
— Weight: 20.7 g

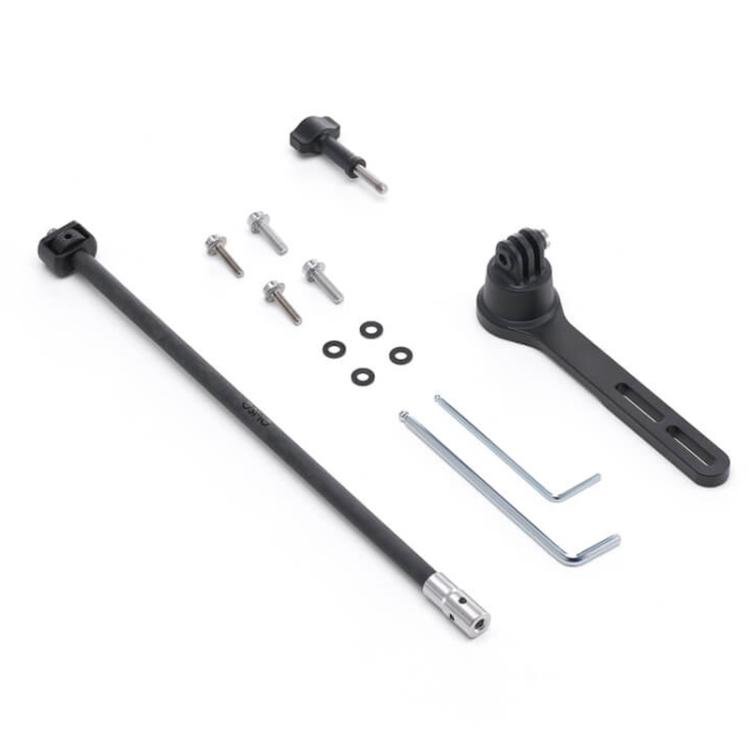

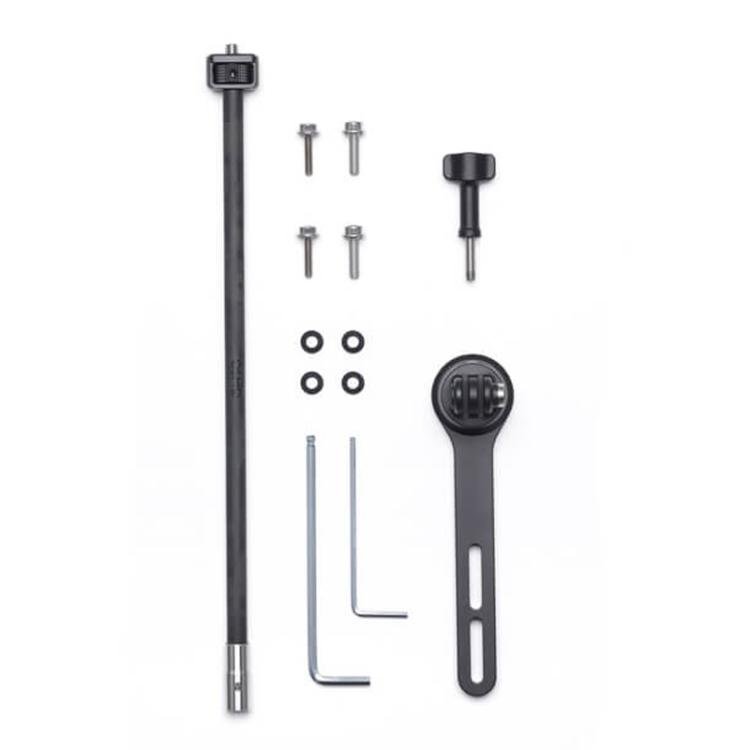

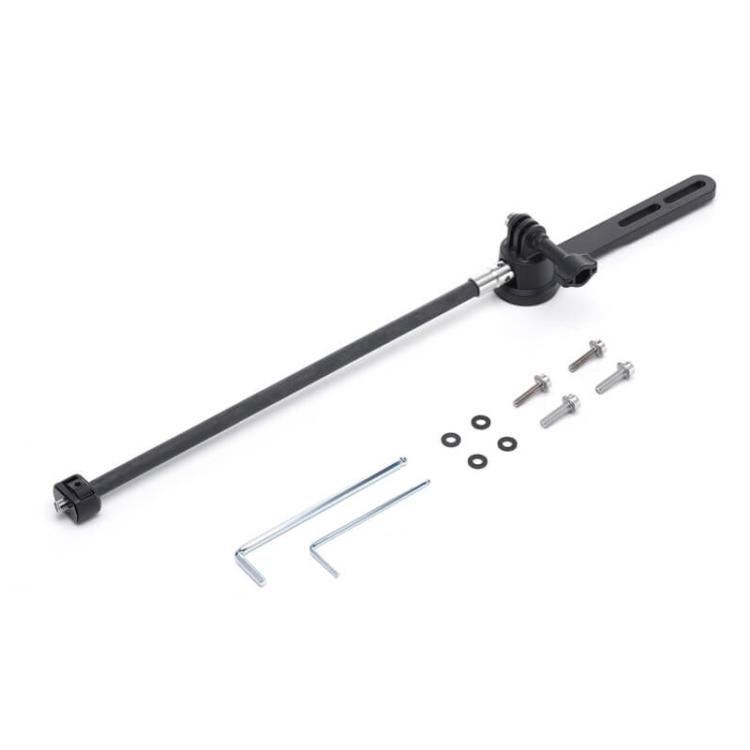

Package Contents:
Osmo Bicycle Multi-function Integrated Handlebar Bracket × 1
28 cm Carbon Fiber Extension Rod × 1
Osmo Locking Thumbscrew × 1
Hex Key Wrench × 2
M5 Screw × 2
M4 Screw × 2
Anti-loosening Washer × 4
Specification:
| General |
| Compatible with |
DJI: Osmo 360
|
|
| Package Weight |
| One Package Weight |
0.20kgs / 0.45lb |
| One Package Size |
33cm * 8cm * 5cm / 12.99inch * 3.15inch * 1.97inch |
| Carton Weight |
7.50kgs / 16.53lb |
| Carton Size |
35cm * 34cm * 42cm / 13.78inch * 13.39inch * 16.54inch |
| Loading Container |
20GP: 533 cartons * 32 pcs = 17056 pcs
40HQ: 1238 cartons * 32 pcs = 39616 pcs |
|
